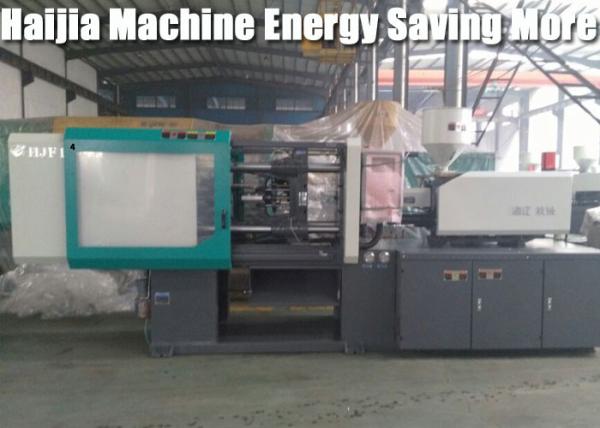

Fatigue Resistant Bakelite Injection Molding Machine For Large Size Plastic Products

Name: Fatigue Resistant Bakelite Injection Molding Machine For Large Size Plastic Products
Brand: HAIJIA
Price: 1 USD

Brand Name : HAIJIA

Model Number : HJF2000

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiation

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 100 sets one month

Delivery Time : 30 days

Packaging Details : standard export packing

Machine typehydraulic type : Hydraulic

Clamping force : 20000 KN

Structure : Horizontal

Plasticizing Way : by Screw

Usage : large size plastic products

space between tie bar : 1650mm*1500mm

Oil Tank capacity : 3700L

Heat Power : 110.7kw

Contact Now

Double toggle Bakelite injection molding machine Max pump pressure 17.5 Mpa pump motor power 45+55+55 kw

The Characteristic Of HAIJIA Special Machine
Close loop barrel temperature control
Clamping unit
Five point double tiggle clamping unit
Electronic ruler for mold open and close position
Mechanical safety device
Multi stage of mold open /close speed, pressure and position
Fast mold close
Automatic mold height adjustment
Low pressure mold protection
Box model platen: T slots
Auto centering lubrication system
Hydraulics
Propoffional pressure and speed control
Oil suck filter
Oil temperature control and alarm
By-pass oil filter

Hydraulic closed loop and motor speed closed loop is realized by control system with the features of high repetition, high linearity, high linearity, high efficiency, high precision, fast response, low rejection rate,low noise, low vibration and long service life, High-rigidity template design with T shot andordinary threaded hole facilitates the mold installtion. Oil filter equipment of high performance and high precision can keep the grease within NAS8. Color control system is adopted

**HJF2000 High quality** **hydraulic injection Molding Machine**
Injection Unit	A B
Screw Diameter mm	140 150
Screw L/D Ratio L/D	24 22
Shot Size (Theoretical) cm³	11238 12900
Injection Weight (PS) g	10226 11739
Injection Rate g/s	1360 1560
Injection Pressure Mpa	163 142
Screw Speed rpm	70
Clamping Unit
Clamp Tonnage KN	20000
Toggle Stroke mm	1600
Space Between Tie Bars mm	1650*1500
Max.Mold Height mm	1620
Min.Mold Height mm	800
Ejector Stroke mm	420
Ejector Tonnage KN	490
Others
Max.Pump Pressure Mpa	16.5
Pump Motor Power KW	45+55+55
Heat Power KW	110.7
Machine Dimension m	17.83.354.28
Machine Weight t	156

Bakelite injection molding machine,hydraulic components of eurpean and american brands with different circuit design ensure locking fast,low nosie,shortent the molding cycle,improve production efficiency
