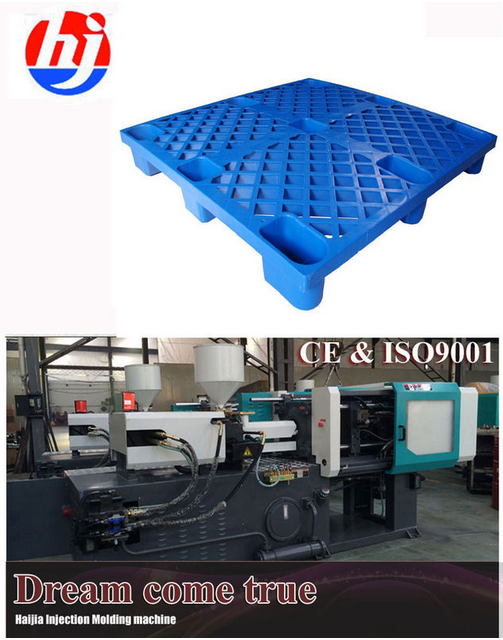

Electric Thermoplastic Tray Injection Molding Machine 165mm Ejector Stroke

Name: Electric Thermoplastic Tray Injection Molding Machine 165mm Ejector Stroke
Brand: HAIJIA
Price: 1 USD

Buy cheap Electric Thermoplastic Tray Injection Molding Machine 165mm Ejector Stroke product

Brand Name : HAIJIA

Model Number : HJF 240

Certification : CE ISO9001

Place of Origin : China (Mainland)

MOQ : 1 set

Price : USD $10,000--$620,000 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000set/sets per year

Delivery Time : 20-30days

Packaging Details : Standard Export Package for Injection Machine

Injection Rate : 179

Injection Pressure : 160.8

Screw Speed : 0-180

Clamp Tonnage : 2400

Toggle Stroke : 490

Space Between Tie Bars : 530*510

Contact Now

1. Optimized clamping unit provides lower energy consumption and faster movements for reduced cycle times.

2. The redesigned toggle kinematics for higher efficiency and lower energy consumption for small and large machines.

3. The redesigned clamping unit providing lower platen stress and higher mold force stability, reducing mold wear and improving molded product stability.

4. Fixed platen with centralized force loading and less platen flexing. Redesigned moving platen providing centralized force distribution from the toggle system to the mold. The result: higher rigidity and stability.

SPECIFICATION		HJF240
Screw Type		A	B	C
Screw Diameter	Mm	50	55	60
Screw L/D Ration	L/D	22.2	20	18.2
Shot Size(Theoretical)	cm3	508	593	706
Injection Weight(PS)	g	462	534	642
Injection Rate	g/s	148	179	202
Injection Pressure	MPa	180	160.8	128
Screw Speed	rpm	0~180
Clamping Force	KN	2400
Opening stroke	Mm	490
Space Between Tie Bars	mm	530*510
Max.Mold Height	mm	530
Min.Mold Height	mm	200
Ejector Stroke	mm	165
Ejector Tonnage	KN	70
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	18.5
Heater power	KW	11.65
Machine Dimension(LWH)	M	5.41.52
Machine weight	T	7
Oil Tank Capacity	L	340
