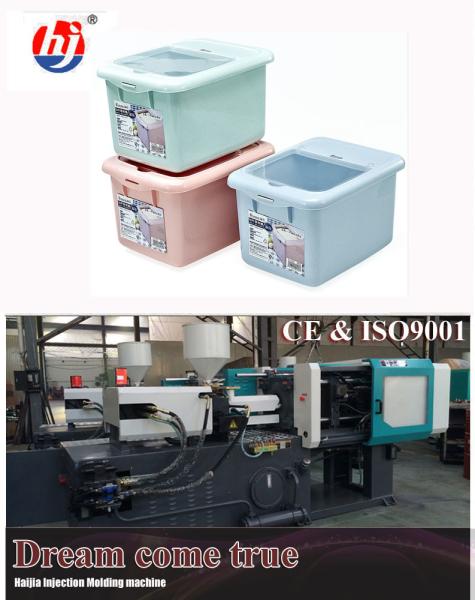

plastic turn-over box injection molding machine manufacturer mould making line in China price
Servo energy-saving system
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves.
Long working life: Imported spare parts and updated version.
Aftersales service: Professional & timely.
Using the servo motor oil esectriciyt composite sturcture, high response, low noile and excellent
electricity -saving performance.
■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
High precision
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Low noise
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.
| SPECIFICATION |
HJF-780 |
| |
A |
B |
C |
D |
| Screw Diameter |
Mm |
90 |
95 |
105 |
110 |
| Screw L/D Ration |
L/D |
23.2 |
22 |
19.9 |
19 |
| Shot Size(Theoretical) |
cm3 |
2924 |
3258 |
3981 |
4369 |
| Injection Weight(PS) |
g |
2632 |
2933 |
3583 |
3932 |
| Injection Rate |
g/s |
574 |
640 |
781 |
858 |
| Injection Pressure |
MPa |
195 |
175 |
143 |
130 |
| Screw Speed |
rpm |
115 |
| Clamp tonnage |
KN |
7800 |
| Opening stroke |
Mm |
950 |
| Space Between Tie Bars |
mm |
980*950 |
| Max.Mold Height |
mm |
960 |
| Min.Mold Height |
mm |
400 |
| Ejector Stroke |
mm |
280 |
| Ejector Tonnage |
KN |
186 |
| Max.Pump Pressure |
MPa |
16 |
| Pump Motor Power |
KW |
37+30 |
| Heater power |
KW |
56.7 |
| Machine Dimension(L*W*H) |
M |
11.43*2.40*3.14 |
| Machine weight |
T |
37 |
| Oil Tank Capacity |
L |
1500 |
