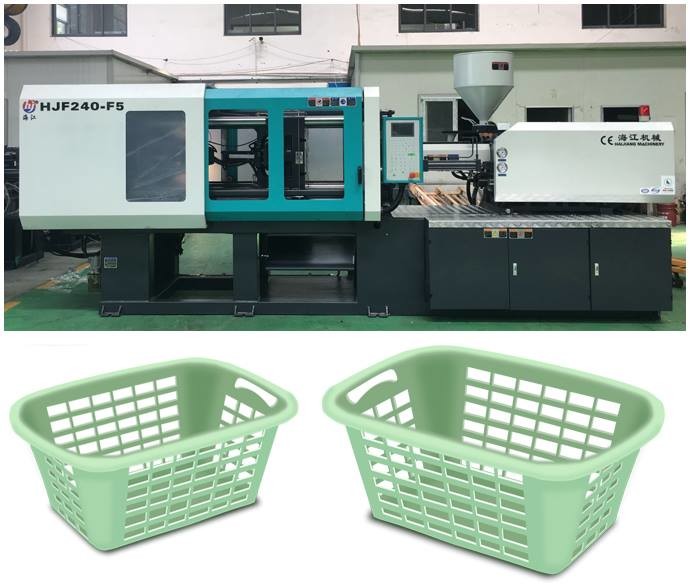

Servo Type Plastic Mold Making Machine Saving Energy Cnc Injection Moulding Machine

Name: Servo Type Plastic Mold Making Machine Saving Energy Cnc Injection Moulding Machine
Brand: HAIJIA
Price: 1 USD

Buy cheap Servo Type Plastic Mold Making Machine Saving Energy Cnc Injection Moulding Machine product

Brand Name : HAIJIA

Model Number : HJF 650

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 20-30days

Packaging Details : Export Standard Packing

Structure : Horizontal

Plasticizing Way : Screw Type

Plastic Type : Thermoplastic

Automation : Automatic

Clamping Force : 7800KN

HS Code : 8477101090

Transport Package : Export Standard Packing

Contact Now

Servo Type Plastic Mold Making Machine Saving Energy Cnc Injection Moulding Machine

Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

High Energy saving

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.

SPECIFICATION		HJF-650
		A	B	C	D
Screw Diameter	Mm	90	95	100	105
Screw L/D Ration	L/D	20	19	18	17.1
Shot Size(Theoretical)	cm3	2800	3117	3454	3808
Injection Weight(PS)	g	2517	2805	3108	3427
Injection Rate	g/s	552	612	679	748
Injection Pressure	MPa	184	165	149	135
Screw Speed	rpm	150
Clamp tonnage	KN	6500
Opening stroke	Mm	870
Space Between Tie Bars	mm	*890890**
Max.Mold Height	mm	900
Min.Mold Height	mm	350
Ejector Stroke	mm	250
Ejector Tonnage	KN	150
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	55
Heater power	KW	42.95
*Machine Dimension(LWH)*	M	*10.22.242.71*
Machine weight	T	28
Oil Tank Capacity	L	1300
